Features
- Power ratings:
- 200…240V: 2.2…37 kW / 3…50 Hp / 12…145 A
- 380…480V: 2.2…250 kW / 3…350 Hp / 6…460 A
- NEMA/UL Type 1, 12, 3R, and 4 enclosures
- Flange-mount and panel-mount options
- V/Hz control, slip compensation, and PID control
- Internal RS 485, Common Industrial Protocol (CIP™), embedded Modbus® RTU, Metasys® N2, and Apogee® FLN P1-plant floor network protocols
- Supports Drive Serial Interface (DSI) communication modules
- Drive overload protection, flying start, purge and damper input, hand/off/auto, and sleep/wake features
- Packaged drive options include disconnect and contactor bypass packages
- Available line reactor option
- Configuration and programming via integral keypad, remote keypad, DriveTools™ SP software, or DriveExplorer™ software
- Premier Integration with PowerFlex AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
Packaged HVAC Fan and Pump Drive Options
- Main input disconnect
- 3-contactor full bypass with disconnect
- 3-contactor basic bypass with disconnect
Products

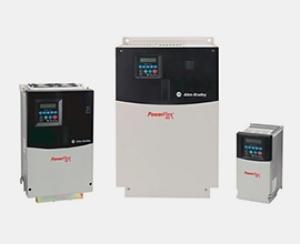

- 22C PowerFlex 400 AC Drives
- 23C PowerFlex 400, Fan & Pump Packaged Drive
Certifications
- UL, cUL, CE, C-Tick, IEC (Designed to Meet), UL508C Plenum Rating
Certifications apply when product is marked. See our Product Certification site for Declarations of Conformity, certificates and other certification details.
Learn More
- Premier Integration of RSLogix 5000 and PowerFlex drives reduces development time by providing profiles, parameters and standardized tags, as well as copy and paste programming to simplify configuring multiple drives.
- Our industry expertise in Drives Systems Solutions can help you maximize machine availability and minimize project risk.
- Intelligent Motor Control Solutions can protect your investment, help optimize productivity and improve uptime.
- The Integrated Architecture system provides the foundation to drive plantwide optimization efficiently and effectively
